By H. Çağatay Alıca, Arkitech Advanced Construction Technologies
July 23, 2026 — For decades, questions about steel framing durability have centered on one issue: moisture. Moisture and condensation can facilitate corrosion, making moisture management one of the most important considerations in cold-formed steel (CFS) design.
Yet research and decades of building experience show that several factors effectively control corrosion. They include protective metallic coatings, strategic building design and the inorganic nature of steel.
Those strategies allow galvanized CFS members to perform far beyond the lifespan many assume. Studies cited in this article predict service lives of 300 to more than 1,000 years for framing protected within a building envelope. Unlike organic framing materials, steel also remains dimensionally stable because it does not absorb moisture, warp, shrink or support mold growth.
Understanding why requires more than simply looking at steel itself. Long-term performance depends on coating technology, moisture control, ventilation, material compatibility and thoughtful building design. Together, these factors determine how effectively cold-formed steel resists corrosion and delivers long-term durability.
Understanding that performance requires examining the mechanisms that govern corrosion, moisture management and long-term durability.

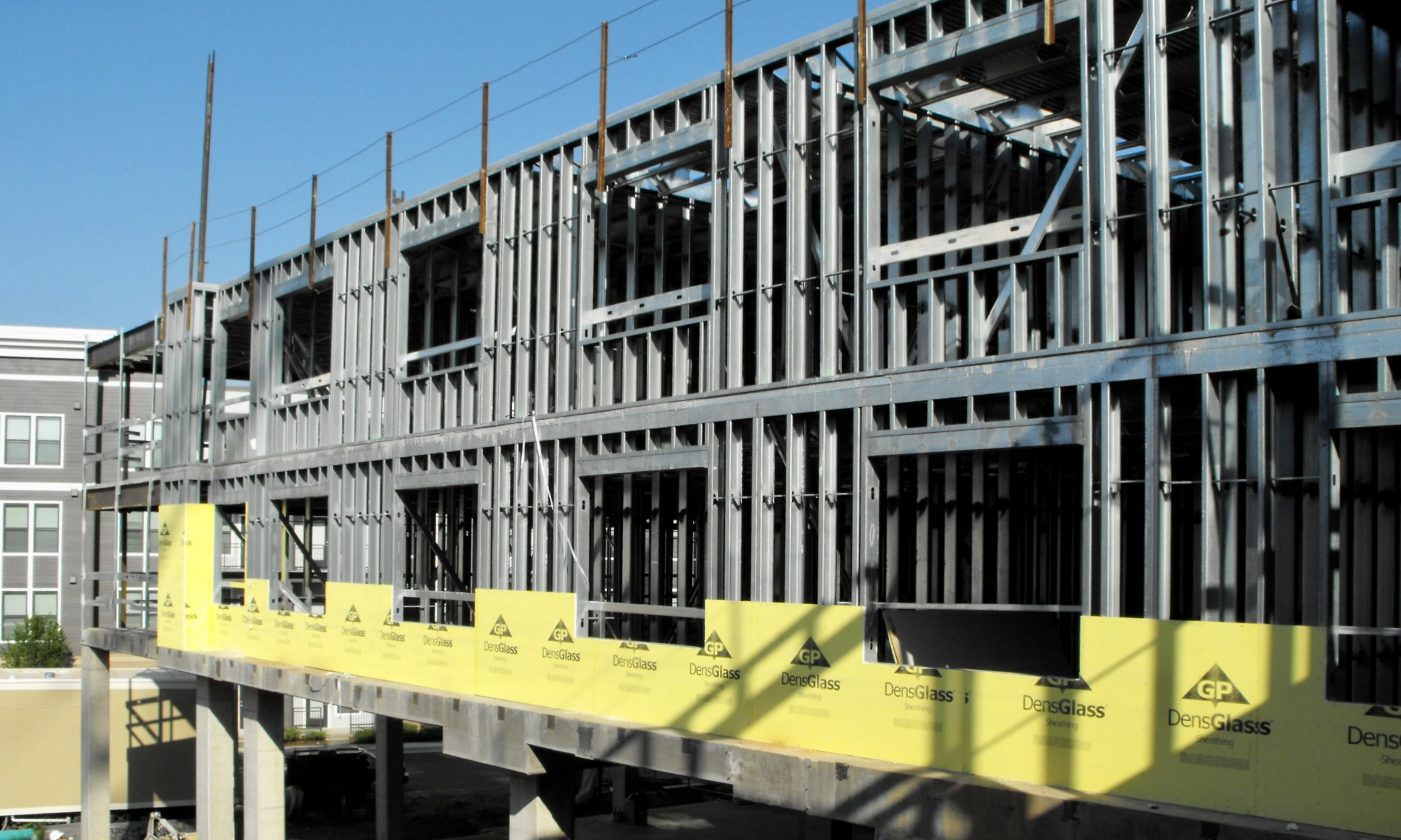

Protective metallic coatings, proper building design and the inorganic nature of cold-formed steel (CFS) framing work together to minimize the effects of moisture and condensation.
How Moisture Affects Cold-Formed Steel Durability
1. The Mechanism of Corrosion
Corrosion occurs only when moisture acts as an electrolyte. To prevent this, manufacturers typically galvanize cold-formed steel members with zinc or zinc-aluminum alloys, providing a physical barrier and moisture management. Furthermore, the zinc provides sacrificial cathodic protection. If cut edges or scratches expose the steel, the surrounding zinc corrodes preferentially to protect the substrate.
- Barrier Protection: To prevent this, manufacturers typically coat cold-formed steel members with zinc (galvanized) or zinc-aluminum alloys. This coating provides a physical barrier that prevents moisture from contacting the steel substrate.
- Cathodic Protection: When cut edges or scratches expose the base steel, the zinc coating protects it sacrificially. Because zinc is more electronegative than steel, it corrodes first and protects the adjacent steel.
2. Time of Wetness and Atmospheric Conditions
The corrosion rate of zinc correlates with the “time of wetness” and air pollutant concentrations. While rainfall can wash away protective corrosion products, moisture from condensation often evaporates, leaving behind a stable patina (such as zinc carbonate) that slows further degradation.
In climate-controlled indoor environments, standard coatings can protect framing for centuries. Conversely, partially sheltered exterior areas may stay damp longer, requiring more robust protection.
3. “Warm Frame” and Interstitial Condensation
Modern CFS construction often employs “warm frame” design, keeping the steel within the building’s thermal envelope. Keeping the steel above the dew point minimizes the risk of interstitial condensation. Research indicates that galvanized steel performs exceptionally well in a properly maintained warm-frame application. Its predicted design life exceeds 200 years.
4. Wet Storage Stain (White Rust)
“White rust” or wet storage stain can occur if closely stacked galvanized sheets trap moisture before installation. While this rapid formation of zinc hydroxide is unsightly, it is usually superficial. It does not compromise the coating’s long-term effectiveness after the material dries and installers put it in place.
5. Interaction with Other Materials
Moisture can facilitate reactions between CFS and adjacent materials. Galvanic corrosion with dissimilar metals, like copper, requires an electrolyte to be present. Additionally, while wet concrete is alkaline and can attack zinc, the reaction ceases once the material cures. Designers must also ensure installers place barriers between CFS and certain pressure-treated woods containing corrosive chemicals.
6. Dimensional Stability and Resilience
As an inorganic material, CFS does not absorb moisture, preventing the warping, shrinking, or expansion common in organic framing. In flood scenarios, CFS does not retain water, facilitating faster drying of the structure. It also does not support the growth of mold or mildew, contributing to healthier indoor environments.

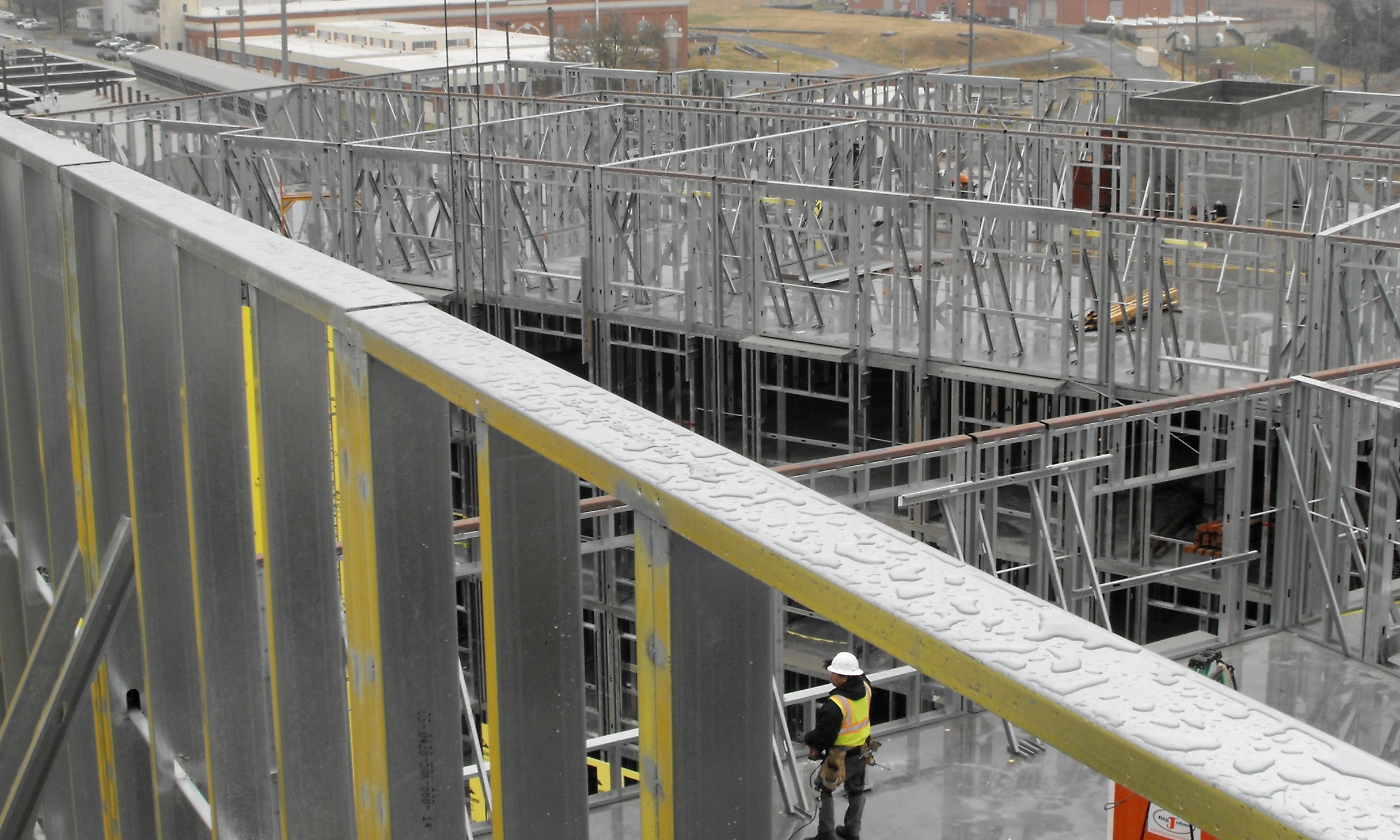

Cold-formed steel (CFS) framing uses zinc or zinc-aluminum galvanized coatings to create a protective barrier against moisture and corrosion.
How Long Does CFS Framing Last?
Studies on the life expectancy of galvanized steel framing in typical residential applications demonstrate exceptional longevity.
According to the NAHB Research Center’s Galvanized Steel Framing for Residential Buildings research report, zinc-coated steel framing installed within a building envelope has a predicted service life ranging from approximately 300 to more than 1,000 years, depending on the exposure environment. Monitoring at residential test sites representing rural, urban and industrial environments found corrosion rates low enough to project a service life exceeding 300 years for a standard 10 µm zinc coating.
In semi-exposed areas, such as attics or crawl spaces, the design life remains substantial. Predictions suggest 200 years for insulated roofs and 100 years for uninsulated roofs. Longevity ultimately depends on proper moisture control. That includes weather-resistive barriers and proper ventilation to keep the framing dry.
How OSB Cladding Affects a Building’s Lifespan
Oriented Strand Board (OSB) is a standard sheathing material for CFS structures. While CFS framing can last centuries, OSB generally has a predicted service life of 60 to 100 years, depending on moisture management.
Keeping OSB moisture content below 20% helps prevent fungal decay and structural strength loss. Using 11 mm OSB as a shear diaphragm meets industry standards, such as AISI S240, provided builders protect it from extreme wetting cycles during and after construction.
H. Çağatay Alıca works in engineering services at Arkitech Advanced Construction Technologies.
Additional Resources
- SFIA 158: Introduction to Galvanized Steel – Coatings, Corrosion and Durability (On-Demand Course)
- Expert Sources Say Steel Framing is the Ideal Anti-Mold Solution
- 10 Reasons to Frame Your Next Project with Steel
