Allowable Screw Shear and Tension Capacities
Question

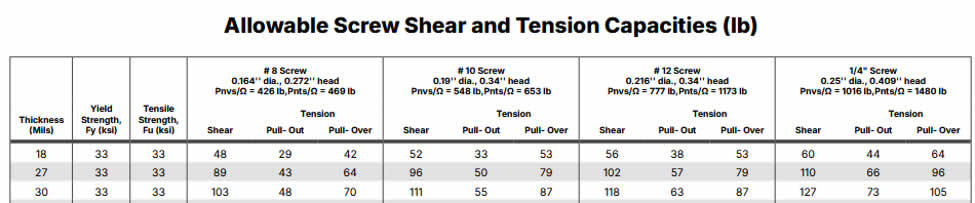

Why does the “Allowable Screw Shear and Tension Capacities” table in the SFIA “Technical Guide for Cold-Formed Steel Framing” list the Fy and Fu values the same (i.e., 33 ksi) for 18, 27 and 30 mil material thicknesses?
Answer

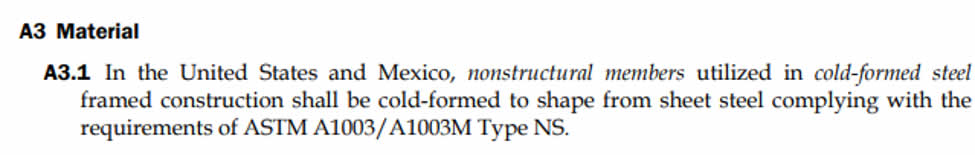

Material thicknesses 18, 27, and 30 mil steels are used for nonstructural framing applications. The North American Standard for Cold-Formed Steel Nonstructural Framing, AISI S220, Section A3.1 stipulates the following:
ASTM A1003 Table 3 (Mechanical Properties, Base Metal) lists minimum mechanical properties requirements for the various steel grades. However, Table 3 does not list minimum requirements for the tensile strength of NS grade steels. The tensile strength is needed to calculate screw capacities per AISI S100 Chapter J. Thus, the SFIA catalog conservatively provides allowable shear and tension capacities based on the minimum required yield strength for NS grade steel.
